Full Automatic Plastic Thermoforming Machine
Introduction

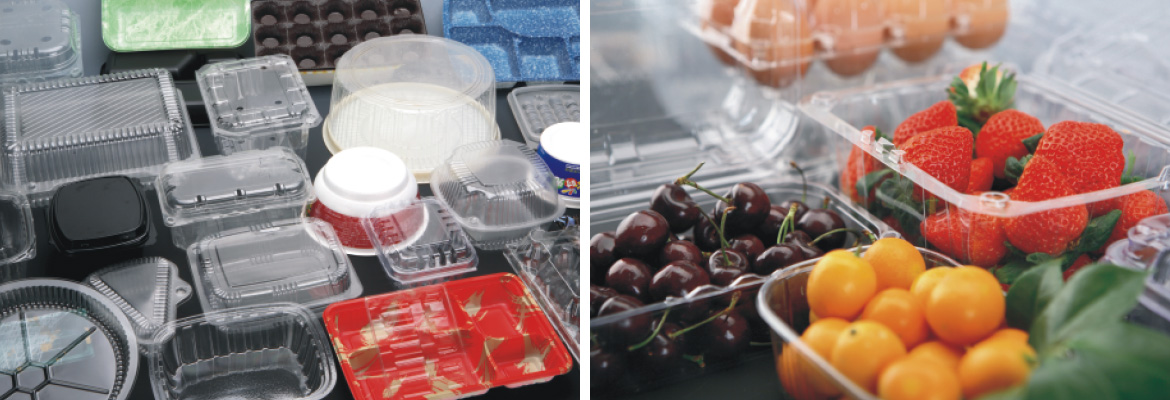

Suitable for BOPS, HIPS, PS, PP, PVC, PET, ABS and other plastic sheet molding, processing high transparent, high stretch, shallow stretch, round, square, up and down two-way stretching, flanging and other products, the production of a variety of boxes, dishes, trays, bowls, covers and other packaging products.
If you have any questions?
Applied Range
The machine adopts the most advanced plastic thermoforming techno-logy and was developed to be a forming machine of high production efficiency. It is a combination of mechanical, electrical and pneumatic components, and the whole system was controlled by micro PLC. The machine has man-interface operation, radiant heat, male and female die forming and laser blade cutting. It combines feeding, heating, forming, cutting and stacking into one process.
| Forming area | 750×850mm |
| Forming depth | 100mm |
| Thickness range of sheet | 0.1-2mm |
| Max. Sheet roller diameter | 710mm |
| Max. Rewinding diameter | 710mm |
| Air pressure | 0.7Mpa |
| Air consumption | 5000升/分(Liters/min) |
| Water consumption | 170升/分(Liters/min) |
| Speed | 400-720次/小时(Cycles/hr) |
| Power | 3×380V+N+PE, 50Hz |
| Heating power of oven | 150kw |
| Weight | 11000kg |

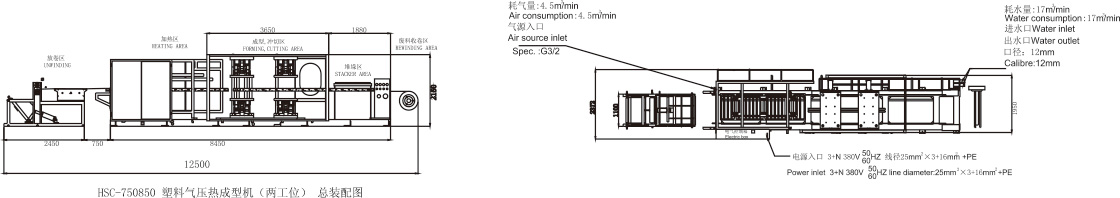

| Dimension | 12000×2200×2200(mm) |
